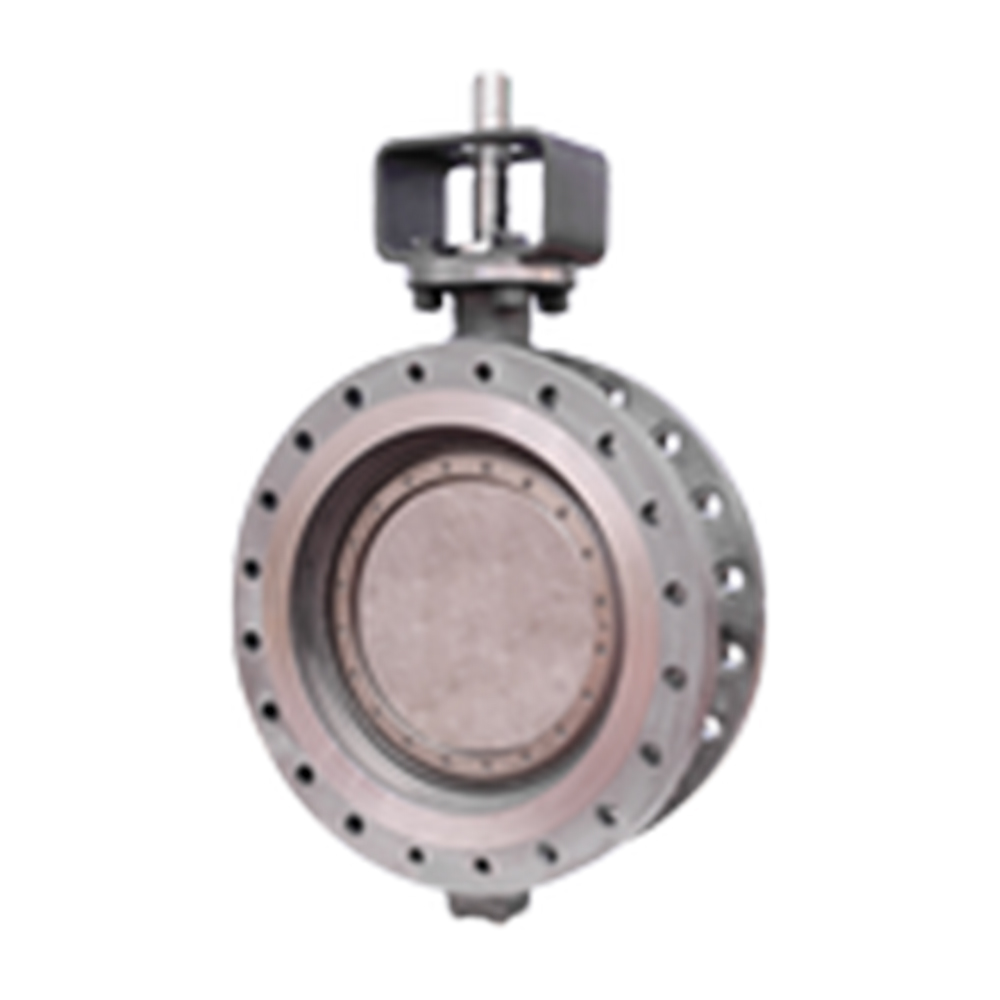

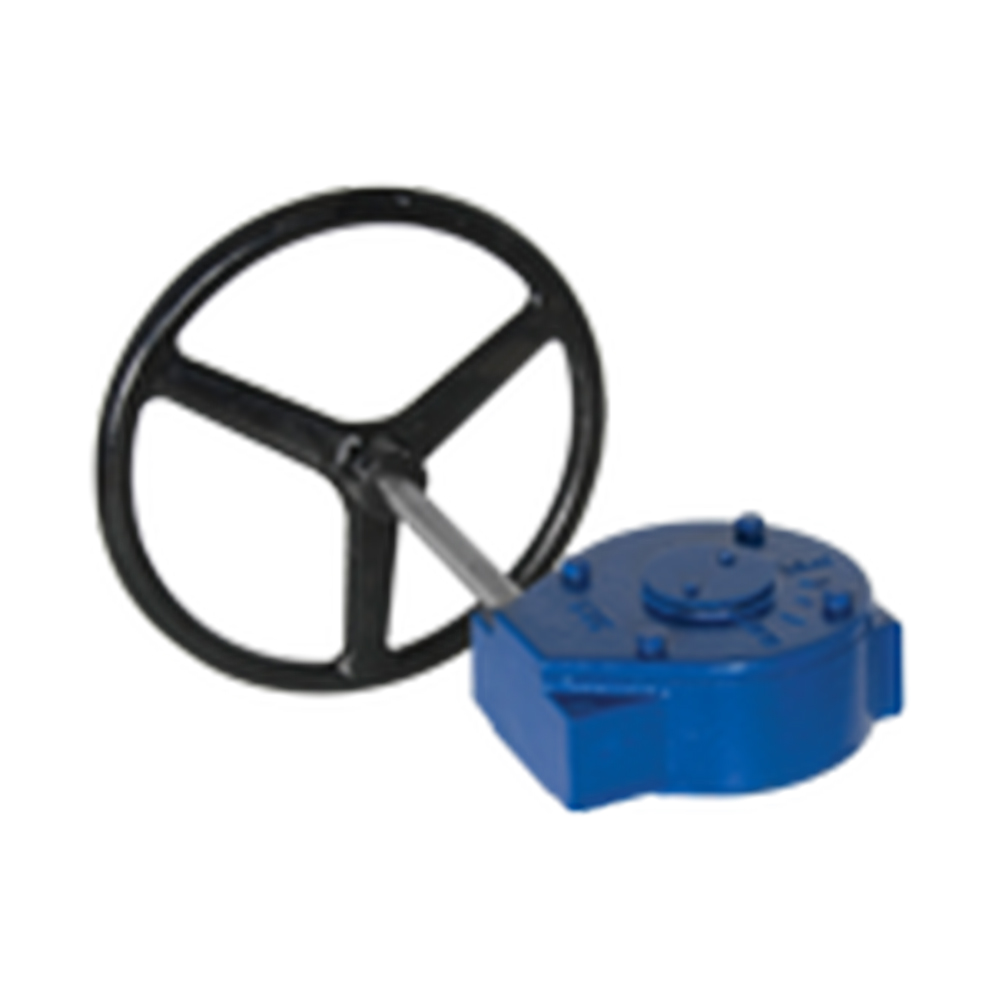

Vanessa Series 30,000 Standard Triple Offset Valve with Manual Actuator


Body DesignLong Pattern, Short Pattern, Top Entry, Welded Body
MaterialCarbon Steel, Duplex, Stainless Steel
Operating TemperatureStandard Temperature
Pressure ClassASME, PN
Seat/Seal TypeMetal-to-Metal
Shutoff ClassAPI 598, Class IV (FCI 70-3), Class V (FCI 70-2), Class VI (FCI 70-2), Zero Leakage
StandardsAPI 609, ASME B16.34
StyleEmergency Shutoff Valves, Switching Valve
Valve SizeNPS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 20 / DN 500, NPS 24 / DN 600, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200
Valve Size StandardDN, NPS
Valve TypeTriple Offset Valve
