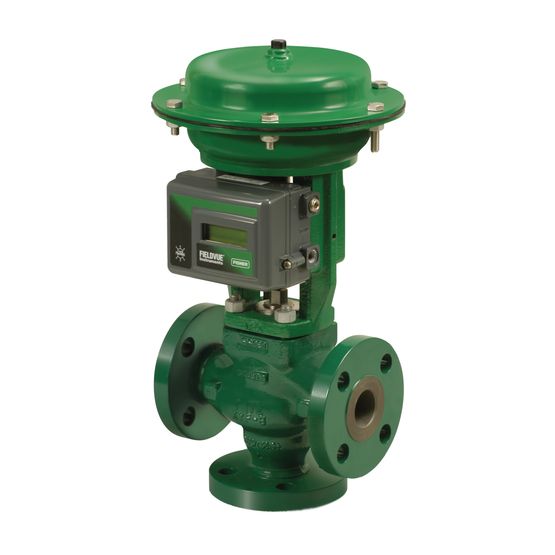

Fisher™ YD And YS Three-Way Cage-Guided Valves


CertificationsCRN, CUTR, Fugitive Emissions, PED
Critical ServiceCorrosive, General Service
Flow CharacteristicsYD: Linear; YS: Equal percentage, Linear
MaterialCarbon Steel, Stainless, Cast Iron
Operating TemperatureStandard Temperature
Pressure ClassCL125, CL150, CL250, CL300, CL600, PN 16, PN 25, PN 40, PN 63, PN 100
Process Connection TypeFlanged, Butt Weld, RTJ, Threaded, Socket Weld
Shutoff ClassYD: Class II (FCI 70-2), Class IV (FCI 70-2); YS: Class IV (FCI 70-2), Class V (FCI 70-2)
Valve SizeNPS 1/2, NPS 3/4, NPS 1, NPS 1-1/2, NPS 2, NPS 2-1/2, NPS 3, NPS 4, NPS 6
Valve Size StandardNPS
Other ConfigurationsContact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
