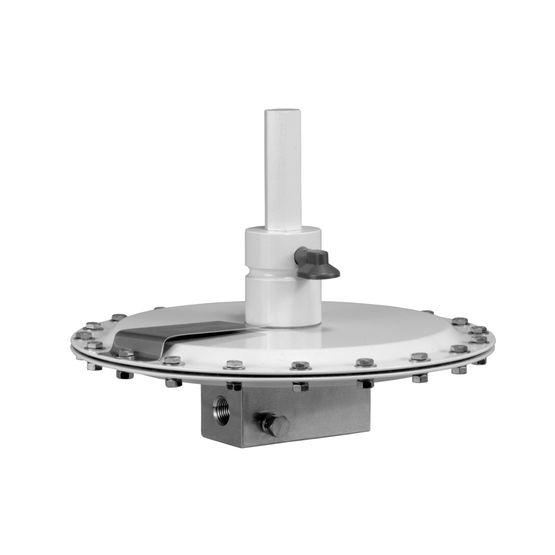

Fisher™ Type ACE95Jr Tank Blanketing Valve


Sizes and End Connection Styles1/2 NPT
1 x 1/2 NPT
1 NPT
NPS 1/2 / DN 15, CL150 RF
NPS 1 / DN 25, CL150 RF
NPS 1 x 1/2 / DN 25 x 15, CL150 RF
NPS 1 / DN 25, Sanitary Flange
Maximum Inlet Pressure200 psig / 13.8 bar
Outlet Pressure Ranges-5 inch w.c. to 1.5 psig / -12 to 103 mbar in six ranges
Pressure RegistrationExternal
Temperature CapabilitiesNBR: -20° to 180°F / -29° to 82°C
FKM: 0° to 212°F / -18° to100°C
EPDM - FDA: -40° to 212°F / -40° to 100°C
FFKM: -20° to 212°F / -29° to 100°C
Approximate Weight30 Pounds / 14 kg
Additional Technical DataFor additional technical information, contact your local Sales Office or refer to technical documentation.
